推薦系統：內容、協同過濾與矩陣分解

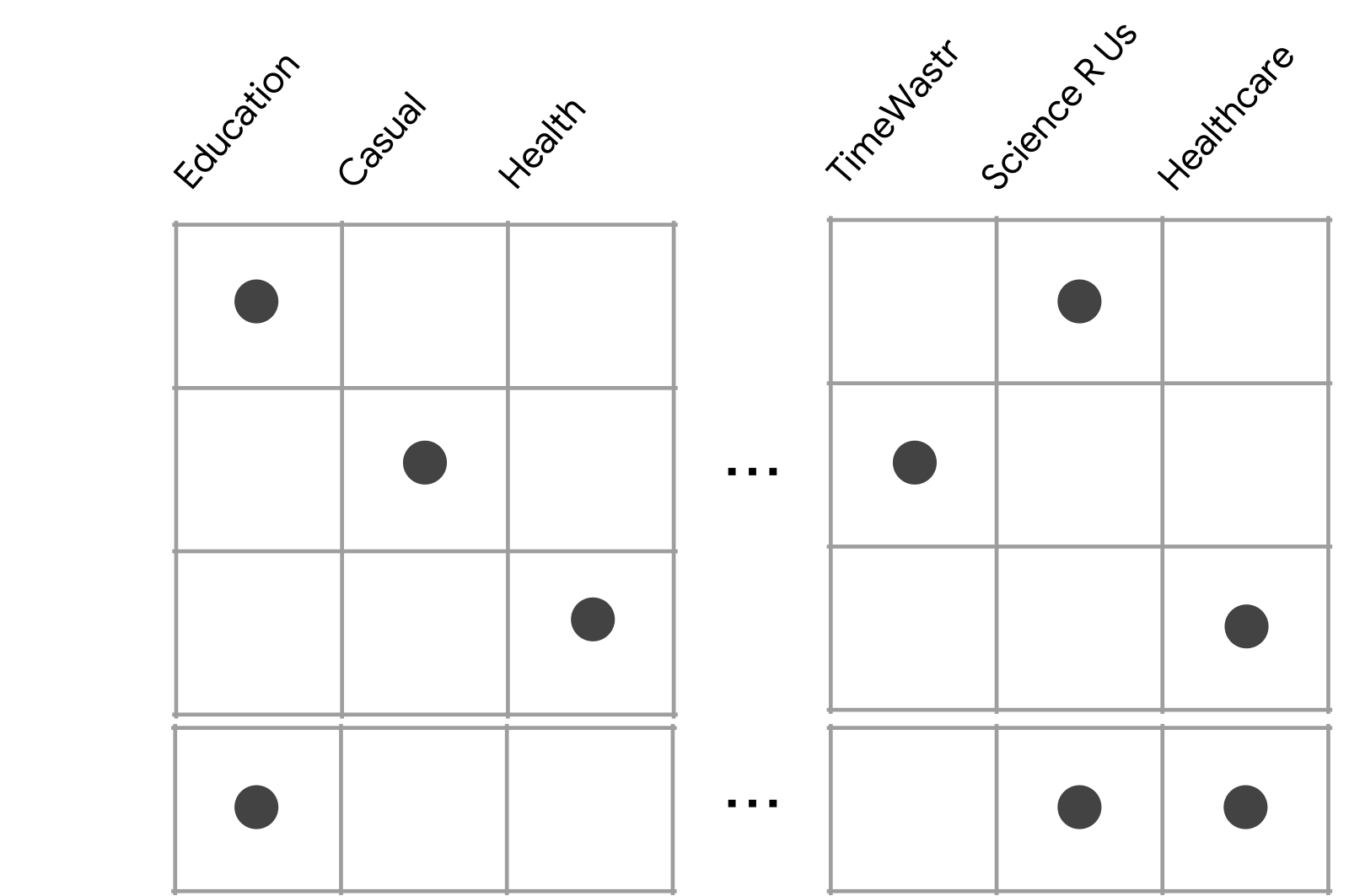

共同啟用的特徵，各貢獻 1

第一個 app：Education + Science R Us = 2
第二個 app：沒有共同啟用特徵 = 0
第三個 app：Healthcare = 1

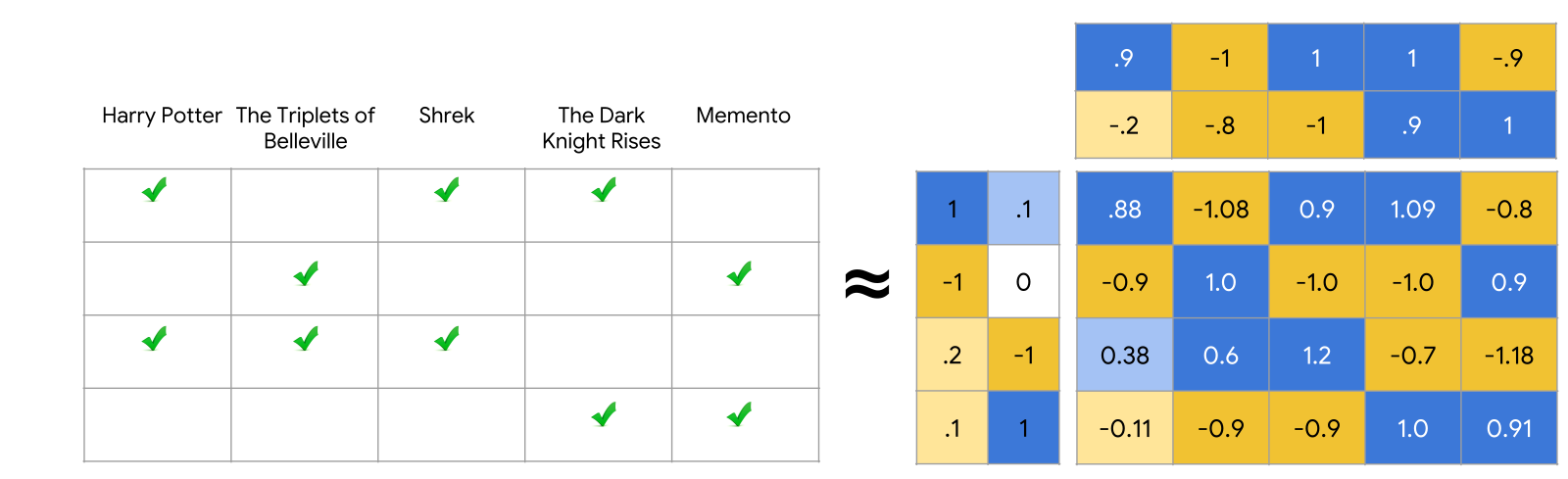

U：使用者數 m × latent dimension d
V：項目數 n × latent dimension d
U V^T：m × n

第 u 列、第 i 欄的點積：U[u] · V[i]

rating_prediction(u,i)
  = training_mean + user_bias[u] + item_bias[i]
    + user_vector[u] · item_vector[i]

error(u,i) = predicted_rating(u,i) - observed_rating(u,i)

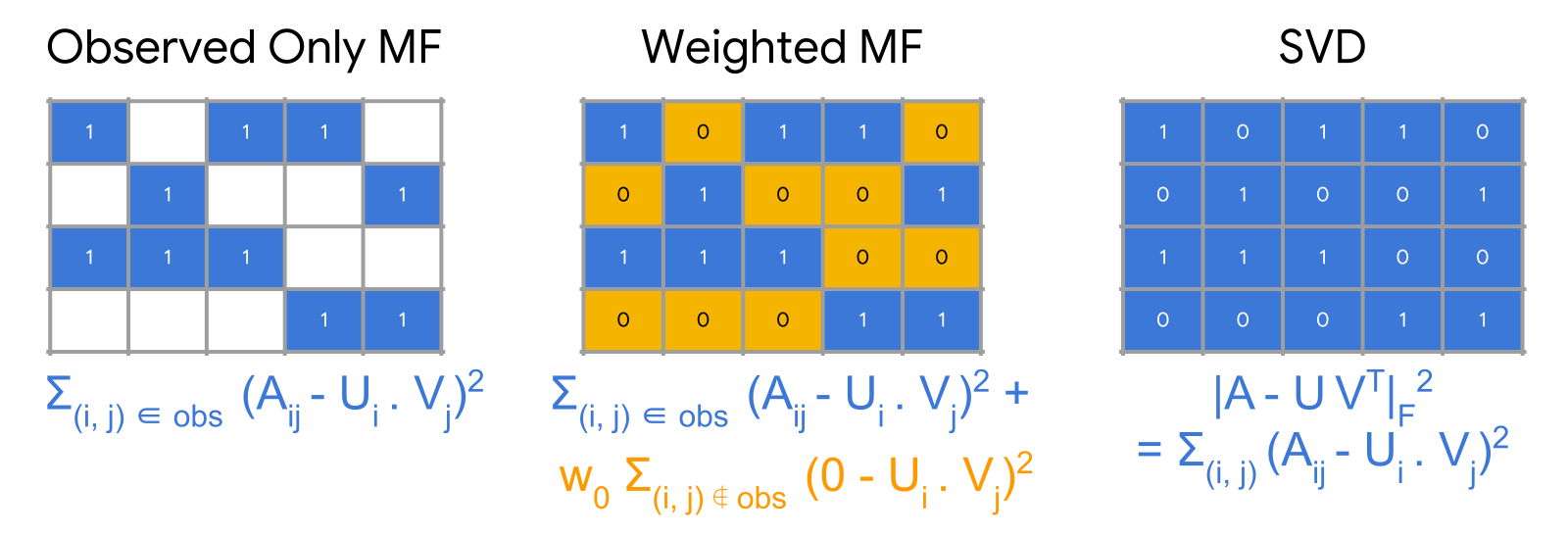

L = mean(error^2 over 24 training observations)
    + 0.02 * [mean(U^2) + mean(V^2)
              + mean(user_bias^2) + mean(item_bias^2)]

numpy==1.26.3

python3 -m venv .venv
source .venv/bin/activate
python -m pip install -r requirements.txt
python content_and_matrix_factorization.py > stdout.json

"""Original sparse-rating example, not a production recommendation benchmark.

Only the 24 training triples update the model; six held-out ratings are scored
after fixed training. Content cosine scores are rankings, not rating predictions.
"""
import json
import platform

import numpy as np


ITEMS = ("A", "B", "C", "D", "E", "F", "G", "H", "NEW")
# Hand-set metadata, not learned collaborative coordinates.
FEATURES = np.array([[1, 0, 0], [1, 0, 0], [0, 1, 0], [0, 1, 0],
                     [0, 0, 1], [0, 0, 1], [1, 1, 0], [0, 1, 1],
                     [1, 0, 1]], dtype=float)
TRAIN = np.array([
    [0, 0, 5], [0, 2, 1], [0, 4, 3], [0, 6, 4],
    [1, 1, 5], [1, 3, 1], [1, 5, 3], [1, 7, 2],
    [2, 0, 1], [2, 2, 5], [2, 4, 2], [2, 7, 4],
    [3, 1, 1], [3, 3, 5], [3, 5, 2], [3, 6, 3],
    [4, 0, 3], [4, 3, 2], [4, 5, 5], [4, 6, 2],
    [5, 1, 3], [5, 2, 2], [5, 4, 5], [5, 7, 4],
], dtype=float)
HELD_OUT = np.array([[0, 1, 5], [1, 0, 4], [2, 3, 4],
                     [3, 2, 5], [4, 4, 4], [5, 5, 5]], dtype=float)
N_USERS, N_SEEN_ITEMS, DIMENSION = 6, 8, 2
UPDATES, LEARNING_RATE, REGULARIZATION, SEED = 2000, 0.05, 0.02, 7


def initialize():
    rng = np.random.default_rng(SEED)
    return {"users": rng.normal(0, .1, (N_USERS, DIMENSION)),
            "items": rng.normal(0, .1, (N_SEEN_ITEMS, DIMENSION)),
            "user_bias": np.zeros(N_USERS), "item_bias": np.zeros(N_SEEN_ITEMS)}


def predict(parameters, triples, mean):
    users, items = triples[:, 0].astype(int), triples[:, 1].astype(int)
    return (mean + parameters["user_bias"][users] + parameters["item_bias"][items]
            + np.sum(parameters["users"][users] * parameters["items"][items], axis=1))


def loss_and_gradient(parameters, mean):
    # Explicit sparse mask: missing pairs never enter this squared rating loss.
    users, items = TRAIN[:, 0].astype(int), TRAIN[:, 1].astype(int)
    error = predict(parameters, TRAIN, mean) - TRAIN[:, 2]
    mse = float(np.mean(error**2))
    penalty = sum(float(np.mean(value**2)) for value in parameters.values())
    gradient = {name: 2 * REGULARIZATION * value / value.size
                for name, value in parameters.items()}
    coefficient = 2 * error / len(TRAIN)
    np.add.at(gradient["users"], users,
              coefficient[:, None] * parameters["items"][items])
    np.add.at(gradient["items"], items,
              coefficient[:, None] * parameters["users"][users])
    np.add.at(gradient["user_bias"], users, coefficient)
    np.add.at(gradient["item_bias"], items, coefficient)
    return mse + REGULARIZATION * penalty, mse, gradient


def train():
    parameters = initialize()
    mean = float(np.mean(TRAIN[:, 2]))
    initial_loss, initial_mse, _ = loss_and_gradient(parameters, mean)
    for _ in range(UPDATES):
        _, _, gradient = loss_and_gradient(parameters, mean)
        # Simultaneous full-batch gradient descent, using all old parameters.
        parameters = {name: value - LEARNING_RATE * gradient[name]
                      for name, value in parameters.items()}
    final_loss, final_mse, _ = loss_and_gradient(parameters, mean)
    return parameters, mean, {"initial_objective": initial_loss,
        "final_objective": final_loss, "initial_training_MSE": initial_mse,
        "final_training_MSE": final_mse}


def content_scores(user):
    history = TRAIN[TRAIN[:, 0] == user]
    if not len(history):
        return None
    centered = history[:, 2] - history[:, 2].mean()
    profile = np.sum(centered[:, None] * FEATURES[history[:, 1].astype(int)], axis=0)
    norm = np.linalg.norm(profile)
    if norm == 0:
        return None
    return FEATURES @ profile / (np.linalg.norm(FEATURES, axis=1) * norm)


def main():
    parameters, mean, record = train()
    item_means = np.array([TRAIN[TRAIN[:, 1] == i, 2].mean()
                           for i in range(N_SEEN_ITEMS)])
    truths = HELD_OUT[:, 2]
    predicted = {"global_training_mean": np.full(len(truths), mean),
                 "item_training_mean": item_means[HELD_OUT[:, 1].astype(int)],
                 "biased_matrix_factorization": predict(parameters, HELD_OUT, mean)}
    evaluation = {name: {"predictions": values.tolist(),
        "RMSE": float(np.sqrt(np.mean((values-truths)**2)))}
        for name, values in predicted.items()}
    seen = {int(i) for u, i, r in TRAIN if u == 0}
    candidates = [i for i in range(N_SEEN_ITEMS) if i not in seen]
    candidate_triples = np.array([[0, i, 0] for i in candidates], dtype=float)
    mf_scores = predict(parameters, candidate_triples, mean)
    content = content_scores(0)
    ranking_mf = sorted(zip(candidates, mf_scores), key=lambda pair: (-pair[1], pair[0]))
    content_candidates = [i for i in range(len(ITEMS)) if i not in seen]
    ranking_content = sorted(content_candidates, key=lambda i: (-content[i], i))
    assert all(np.isfinite(value).all() for value in parameters.values())
    assert set(map(tuple, TRAIN[:, :2])).isdisjoint(set(map(tuple, HELD_OUT[:, :2])))
    print(json.dumps({"scope": "Hand-set explicit ratings and binary item metadata; "
        "actual observed-only matrix-factorization training, no external dataset.",
        "versions": {"python": platform.python_version(), "numpy": np.__version__},
        "settings": {"users": N_USERS, "seen_items": N_SEEN_ITEMS, "dimension": DIMENSION,
            "updates": UPDATES, "learning_rate": LEARNING_RATE,
            "regularization": REGULARIZATION, "seed": SEED,
            "objective": "mean observed squared error + .02*sum(mean(square(each parameter array)))",
            "prediction": "fixed training mean + user_bias + item_bias + user_vector dot item_vector"},
        "training_triples": TRAIN.tolist(), "held_out_triples": HELD_OUT.tolist(),
        "item_names": ITEMS, "item_features": FEATURES.tolist(),
        "training_mean": mean, "training_item_means": item_means.tolist(),
        "training_record": record, "final_parameters": {k: v.tolist() for k, v in parameters.items()},
        "held_out_evaluation": evaluation,
        "user0_unseen_known_item_rating_predictions": [{"item": ITEMS[i], "score": float(s)}
            for i, s in ranking_mf],
        "user0_content_cosine_ranking_including_NEW": [{"item": ITEMS[i], "score": float(content[i])}
            for i in ranking_content],
        "cold_start": {"new_item": "NEW has metadata but no collaborative factor; no MF score emitted.",
            "new_user": "No history means content profile undefined and MF user ID unknown; "
                        "a non-personalized fallback may use training item means.",
            "new_user_content_profile": content_scores(N_USERS),
            "fallback_item_mean_order": [ITEMS[i] for i in sorted(range(N_SEEN_ITEMS),
                key=lambda i: (-item_means[i], i))]},
        "limits": ["Explicit ratings: missing pairs are unobserved, not observed zero-star ratings.",
            "This observed-only loss does not train a binary implicit-feedback recommender.",
            "Fixed settings selected before computing six held-out errors; no tuning on them.",
            "Single seed and 2000 updates do not establish convergence or best model performance.",
            "Six held-out pairs from known IDs are not new-user/new-item generalization.",
            "Content cosine values are not rating predictions or calibrated probabilities.",
            "RMSE is not top-k ranking quality; no ranking or online recommendation benefit measured.",
            "Toy factors have no guaranteed semantic axes; coordinates are not identifiable.",
            "No external rating dataset, movie posters, or third-party user data used."]},
        ensure_ascii=False, indent=2))


if __name__ == "__main__":
    main()

{
  "training_record": {
    "initial_objective": 2.052505312484621,
    "final_objective": 0.03883595297864613,
    "initial_training_MSE": 2.0521671193065143,
    "final_training_MSE": 0.000245321907835023
  }
}

user 0 訓練評分：A=5、C=1、E=3、G=4
個人平均：3.25
中心化權重：A=1.75、C=-2.25、E=-0.25、G=0.75

三維 profile = [2.5, -1.5, -0.25]
cosine(item, profile) = dot(item, profile)
                       / [norm(item) * norm(profile)]

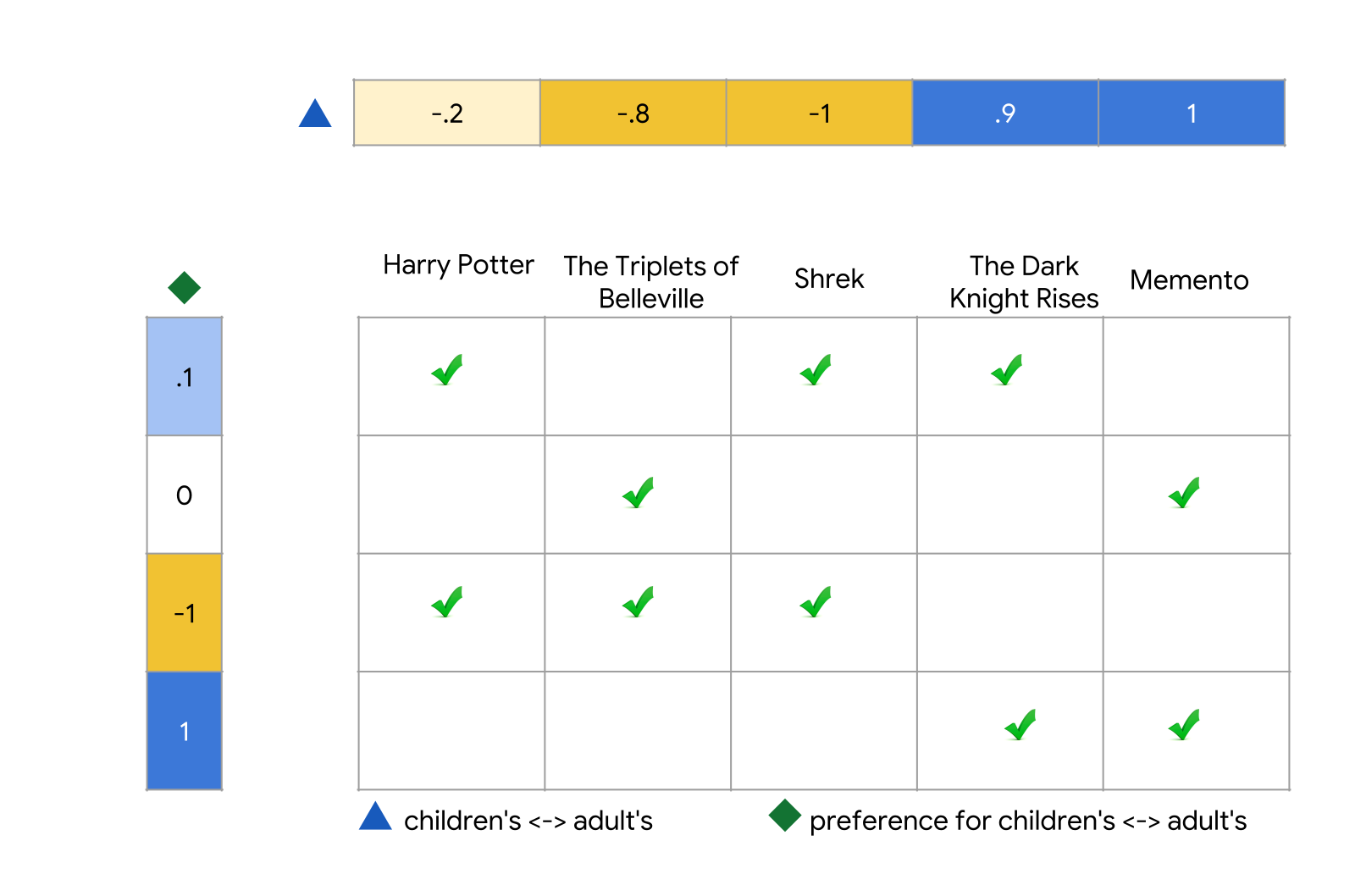

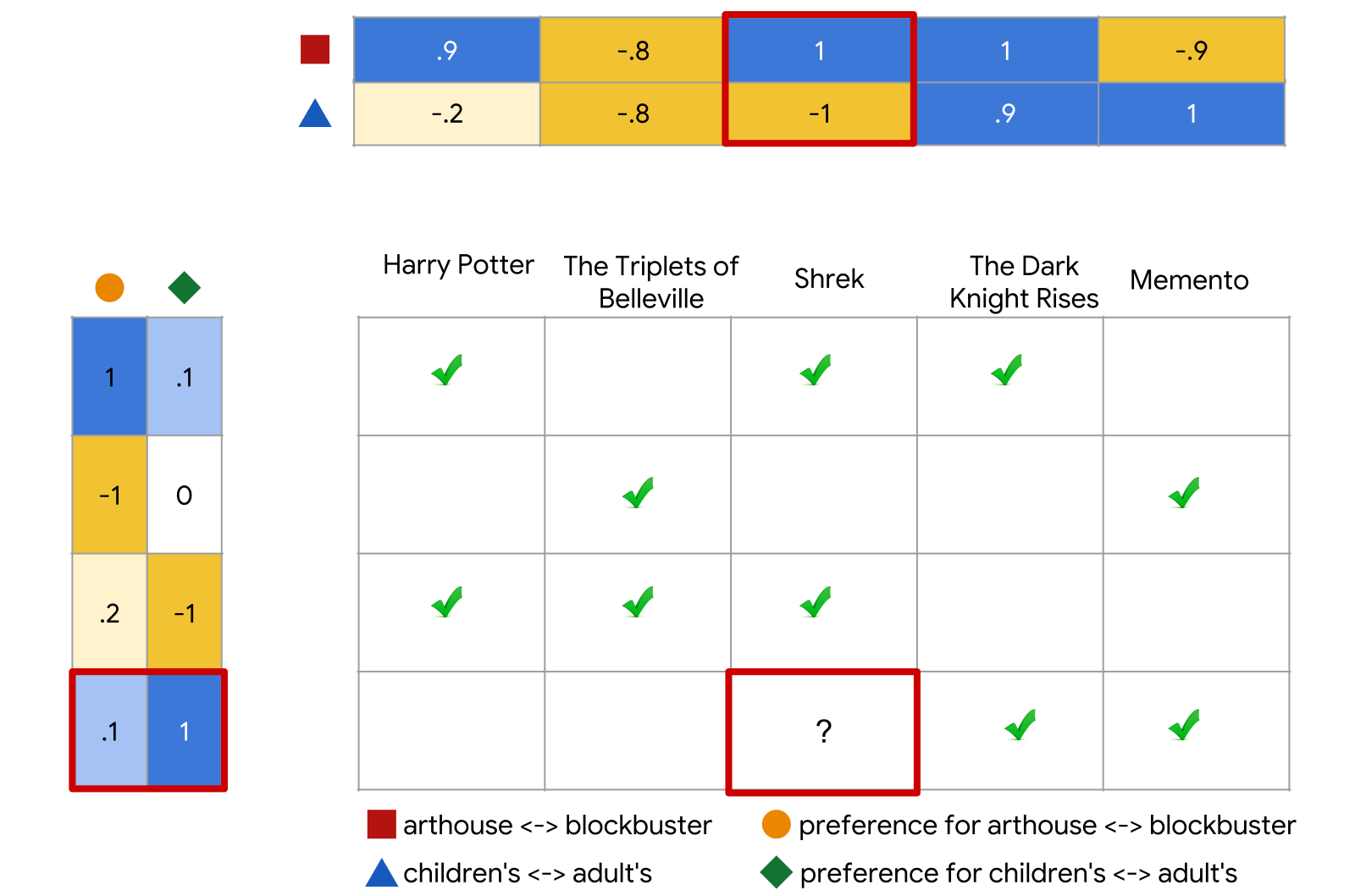

Google Developers recommendation teaching diagrams

Portions of this page are modifications based on work created and shared by Google and used according to terms described in the Creative Commons 4.0 Attribution License:
https://creativecommons.org/licenses/by/4.0/

Original Google source pages:
- Content-Based Filtering: https://developers.google.com/machine-learning/recommendation/content-based/basics
- Collaborative Filtering Basics: https://developers.google.com/machine-learning/recommendation/collaborative/basics
- Matrix Factorization: https://developers.google.com/machine-learning/recommendation/collaborative/matrix

The selected figures are adapted from the original Google SVG diagrams linked on those pages. The embedded movie poster/still and user-avatar images were omitted from the collaborative-filtering diagrams; the four embedded icon/portrait images were omitted from the content-feature diagram. The original vector geometry, text, matrix values, legends and Google diagram checkmarks are retained. The SVGs were rendered as PNG on a white background. Mobile versions include the whole figure first, followed by proportional crops of the original source-render pixels; the cover is a full proportional fit on a 1600×900 white canvas. No values, labels, arrows or data were added.
