LIME：用簡單模型解釋附近的一次預測

pi_x(z) = exp(−D(x,z)^2 / sigma^2)

f(z1,z2) = 0.10 + 0.45z1 + 0.25z2 + 0.10z1z2

sqrt(exp(−d²/kernel_width²))
  = exp(−d²/(2×kernel_width²))

選 g，使下式較小：
  sum_i pi_x(z_i) × [f_j(z_i) − g(z'_i)]² + Omega(g)

前半：在選定鄰域與權重下，代理模型偏離黑箱的程度
後半：代理模型的複雜度

g(z′) = b0 + b1×z1 + b2×z2

g(z′) = 0.006537 + 0.545876×bright + 0.345876×repair

python3 lime_local_surrogate.py

#!/usr/bin/env python3
"""Deterministic LIME-style neighborhood and weighted-surrogate toy."""

from __future__ import annotations

import math


QUERY = (1.0, 1.0)  # two interpretable word-presence indicators
WORDS = ("bright", "repair")
SIGMA = 0.5


def black_box(z: tuple[float, float]) -> float:
    """Hand-specified nonlinear score, not a fitted classifier."""
    z1, z2 = z
    return 0.10 + 0.45 * z1 + 0.25 * z2 + 0.10 * z1 * z2


def cosine_distance(query: tuple[float, float], z: tuple[float, float]) -> float:
    """Cosine distance; define an all-zero neighbor's distance as 1."""
    q_norm = math.sqrt(sum(value * value for value in query))
    z_norm = math.sqrt(sum(value * value for value in z))
    if z_norm == 0.0:
        return 1.0
    cosine = sum(a * b for a, b in zip(query, z)) / (q_norm * z_norm)
    return 1.0 - cosine


def solve_linear_system(matrix: list[list[float]], vector: list[float]) -> list[float]:
    """Solve a small square system with Gaussian elimination and pivoting."""
    size = len(vector)
    augmented = [row[:] + [vector[i]] for i, row in enumerate(matrix)]
    for column in range(size):
        pivot = max(range(column, size), key=lambda row: abs(augmented[row][column]))
        if abs(augmented[pivot][column]) < 1e-12:
            raise ValueError("weighted design matrix is rank deficient")
        augmented[column], augmented[pivot] = augmented[pivot], augmented[column]
        scale = augmented[column][column]
        augmented[column] = [value / scale for value in augmented[column]]
        for row in range(size):
            if row == column:
                continue
            factor = augmented[row][column]
            augmented[row] = [
                a - factor * b for a, b in zip(augmented[row], augmented[column])
            ]
    return [augmented[row][-1] for row in range(size)]


def main() -> None:
    # Enumerate every subset of the two present words: no random sampling.
    neighbors = [(1.0, 1.0), (1.0, 0.0), (0.0, 1.0), (0.0, 0.0)]
    rows = []
    for z in neighbors:
        distance = cosine_distance(QUERY, z)
        weight = math.exp(-(distance * distance) / (SIGMA * SIGMA))
        rows.append((z, distance, weight, black_box(z)))

    # g(z') = beta0 + beta1*z1 + beta2*z2, fit by locality-weighted OLS.
    # This deliberately omits LIME's K-Lasso feature selection/sparsity step.
    design = [[1.0, z[0], z[1]] for z, _, _, _ in rows]
    targets = [prediction for _, _, _, prediction in rows]
    weights = [weight for _, _, weight, _ in rows]
    normal = [
        [sum(w * row[i] * row[j] for w, row in zip(weights, design)) for j in range(3)]
        for i in range(3)
    ]
    rhs = [
        sum(w * row[i] * y for w, row, y in zip(weights, design, targets))
        for i in range(3)
    ]
    beta = solve_linear_system(normal, rhs)

    residual = max(
        abs(sum(normal[i][j] * beta[j] for j in range(3)) - rhs[i])
        for i in range(3)
    )
    assert residual < 1e-10
    local_prediction = sum(beta[j] * [1.0, QUERY[0], QUERY[1]][j] for j in range(3))
    weighted_sse = sum(
        w * (y - sum(b * feature for b, feature in zip(beta, row))) ** 2
        for w, y, row in zip(weights, targets, design)
    )

    print("scope=hand-specified black box; deterministic exhaustive 2-word neighborhood")
    print(f"query_interpretable={QUERY}; words={WORDS}; sigma={SIGMA}")
    print("neighbor z1 z2 cosine_distance locality_weight black_box_score")
    for z, distance, weight, prediction in rows:
        print(f"{int(z[0])} {int(z[1])} {distance:.6f} {weight:.6f} {prediction:.6f}")
    print(f"surrogate=intercept + b1*{WORDS[0]} + b2*{WORDS[1]}")
    print(f"intercept={beta[0]:.6f}; b_{WORDS[0]}={beta[1]:.6f}; b_{WORDS[1]}={beta[2]:.6f}")
    print(f"black_box_at_query={black_box(QUERY):.6f}")
    print(f"surrogate_at_query={local_prediction:.6f}")
    print(f"weighted_squared_error={weighted_sse:.6f}")
    print(f"normal_equation_max_residual={residual:.3e}")
    print("limit=no trained model, corpus, randomized LIME sampling, feature selection, or stability study")


if __name__ == "__main__":
    main()

Copyright (c) 2016, Marco Tulio Correia Ribeiro
All rights reserved.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this
  list of conditions and the following disclaimer.

* Redistributions in binary form must reproduce the above copyright notice,
  this list of conditions and the following disclaimer in the documentation
  and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

# MIT License

Copyright (c) 2025 lime authors

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

# DS56 image source and license notices

This record describes the selected source illustrations. Each source keeps its own grant; this notice does not combine or extend the licenses. All edits are limited to the changes described below. No source data or model outputs were regenerated for these images.

## ISMIR 2017 paper figures — CC BY 4.0

**Source:** Saumitra Mishra, Bob L. Sturm, and Simon Dixon, “Local Interpretable Model-Agnostic Explanations for Music Content Analysis,” ISMIR 2017, Figs. 2, 3, and 6. [Original paper](https://archives.ismir.net/ismir2017/paper/000216.pdf). The paper’s first page grants CC BY 4.0; the selected figure pages show no separate third-party credit. [CC BY 4.0 terms](https://creativecommons.org/licenses/by/4.0/).

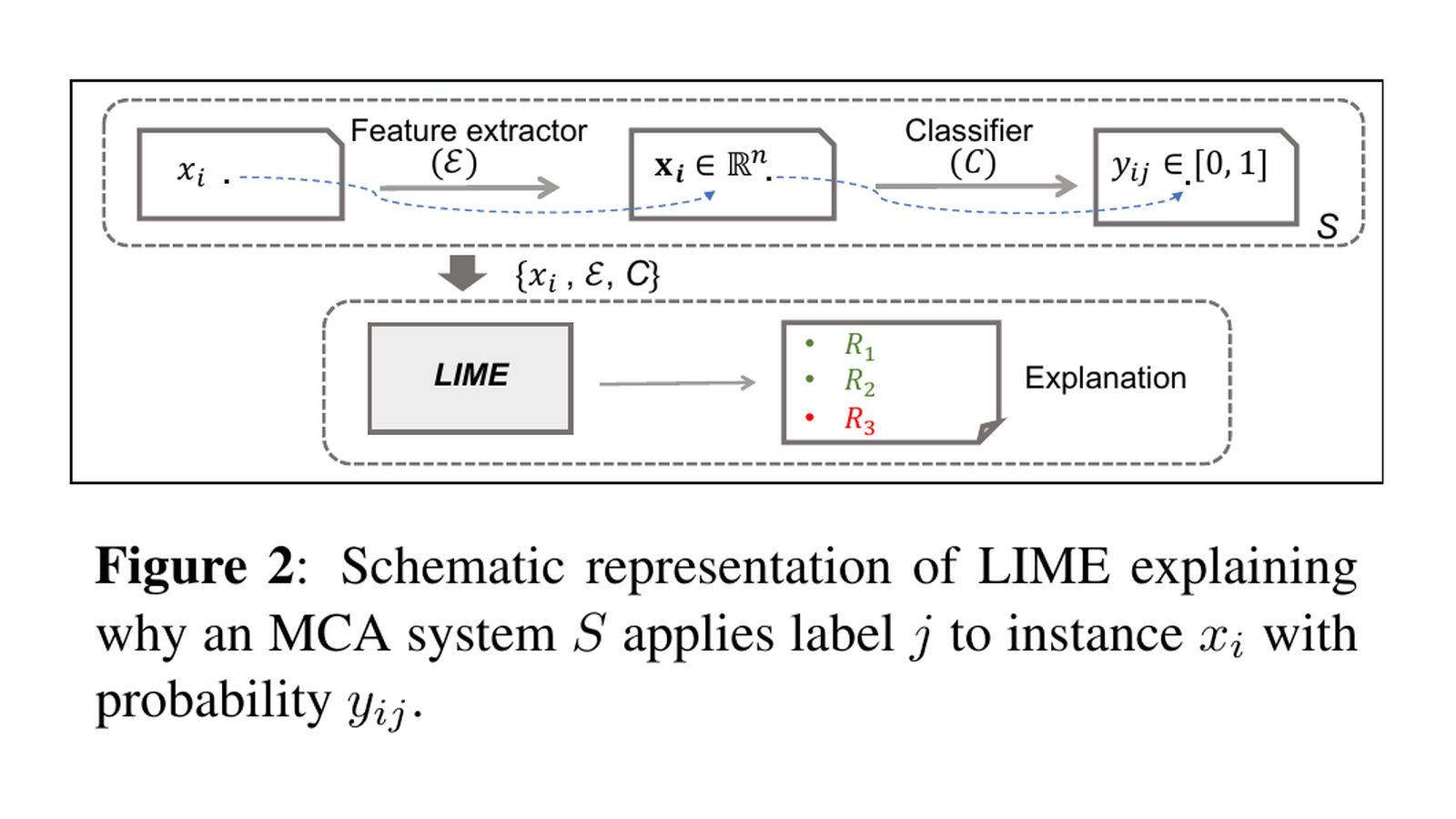

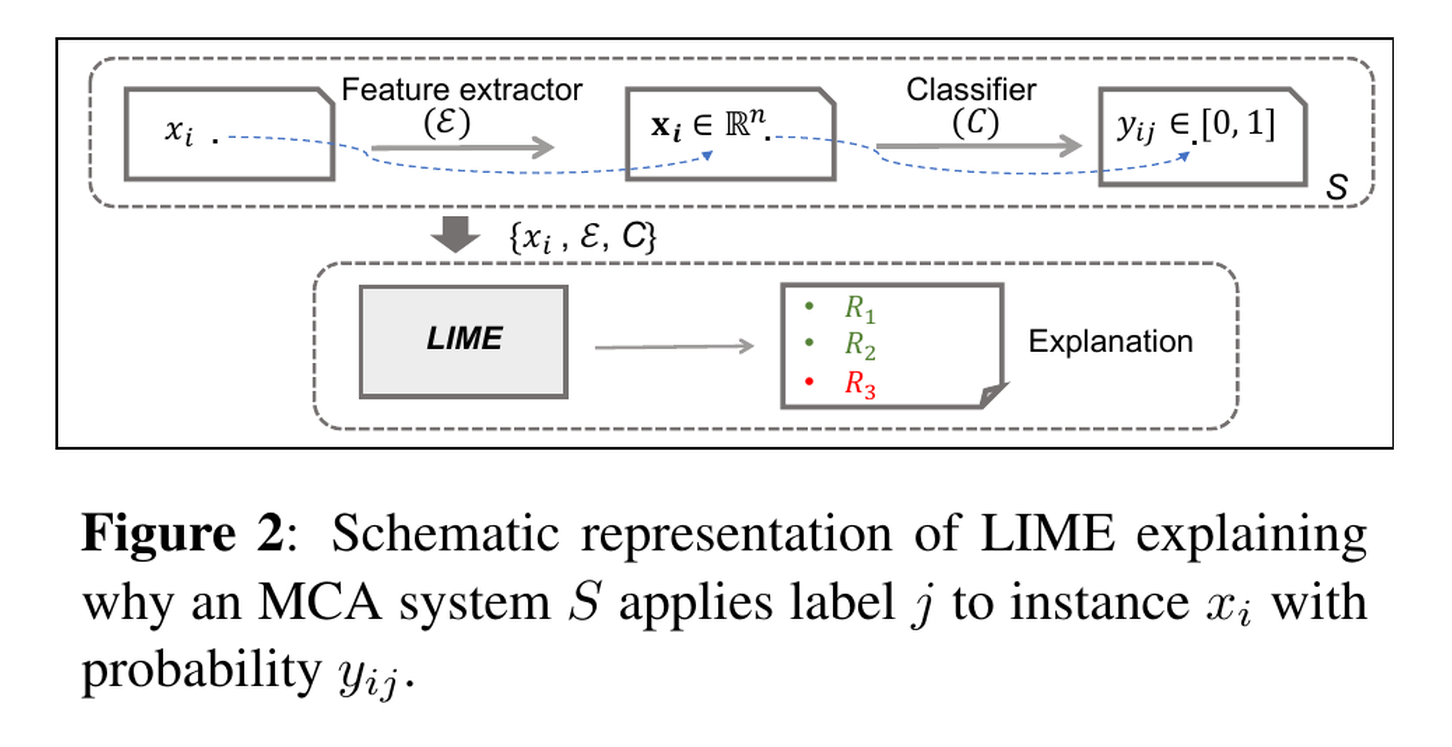

- `fig-01-lime-overview.png`, `fig-01-lime-overview-mobile.png`, `cover-ds56-lime-overview.png`: Fig. 2. The desktop/cover preserve the complete source figure and caption after page-margin cropping; the mobile image places a complete original source-panel crop after the whole figure.

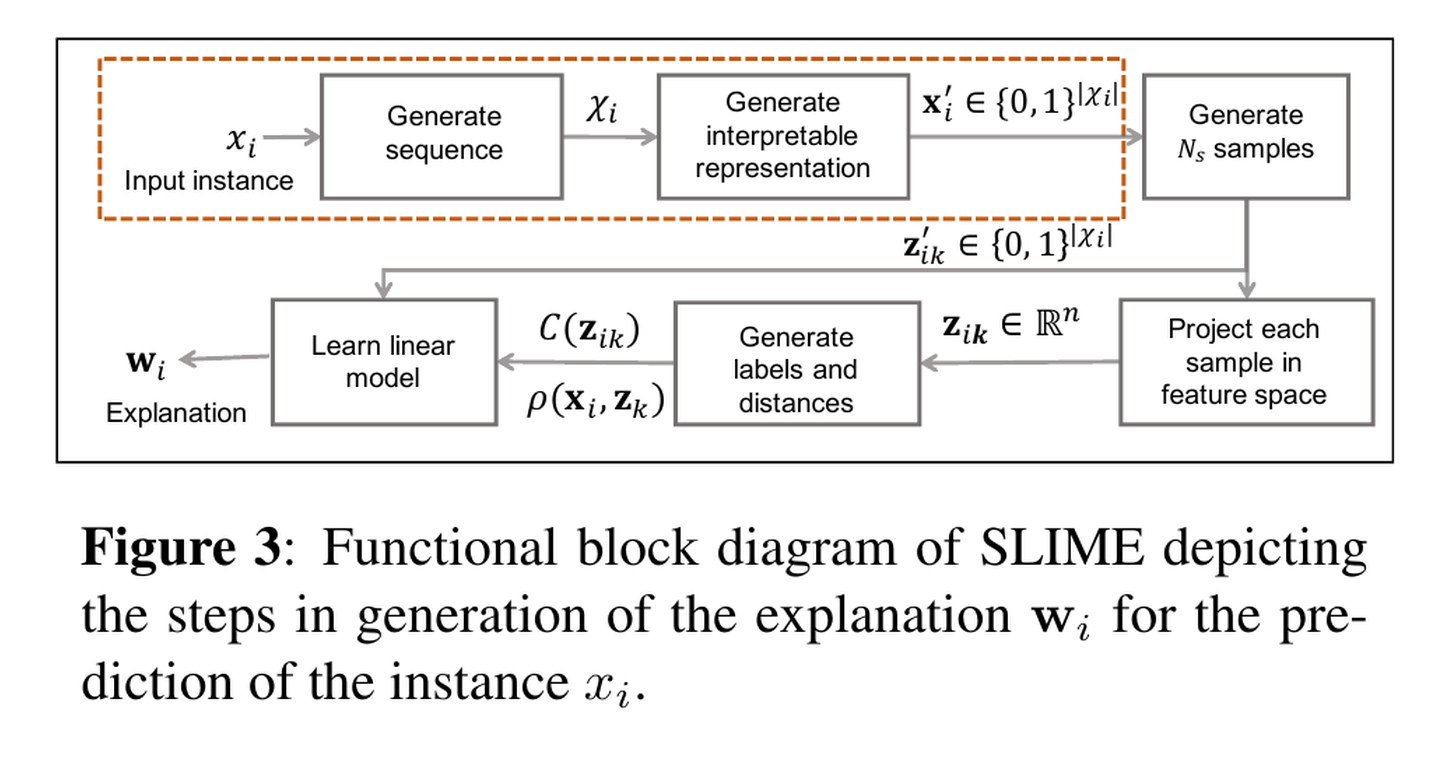

- `fig-02-slime-workflow.png`, `fig-02-slime-workflow-mobile.png`: Fig. 3. The desktop preserves the complete source figure/caption after page-margin cropping; the mobile image places six original node crops after the whole figure. Connections should be read in the complete figure; no connections were added.

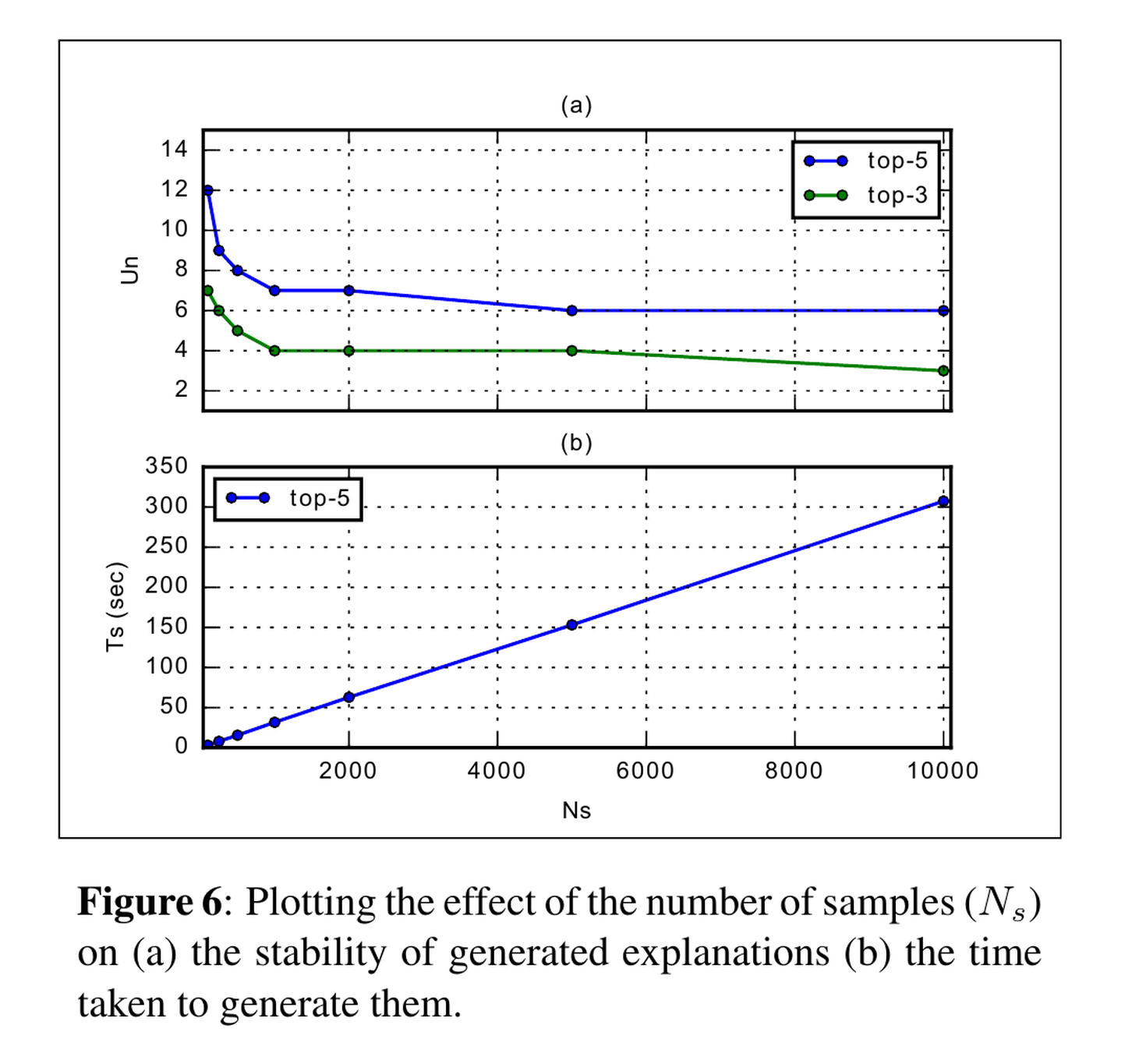

- `fig-03-sample-budget.png`, `fig-03-sample-budget-mobile.png`: Fig. 6. The desktop preserves the full two-panel figure/caption after page-margin cropping; the mobile image places complete original panels after the whole figure.

Changes: page whitespace was cropped, desktop images were proportionally resized with white margins, and mobile variants stack source-only crops beneath the whole source image. The cover proportionally fits the full Fig. 2 on a white 1600×900 canvas. No labels, arrows, data, or visual marks were added or redrawn. Source page/crop coordinates and output hashes are recorded in `source-crop-audit.json`.

## `marcotcr/lime` multiclass output — BSD 2-Clause

**Creator:** Marco Tulio Correia Ribeiro. **Source:** pinned repository commit [`fd7eb2e6f760619c29fca0187c07b82157601b32`](https://github.com/marcotcr/lime/tree/fd7eb2e6f760619c29fca0187c07b82157601b32), [`doc/images/multiclass.png`](https://github.com/marcotcr/lime/blob/fd7eb2e6f760619c29fca0187c07b82157601b32/doc/images/multiclass.png). The repository-authored HTML output is covered by the pinned repository’s BSD 2-Clause license. The full BSD license, copyright notice and disclaimer are reproduced above in this article.

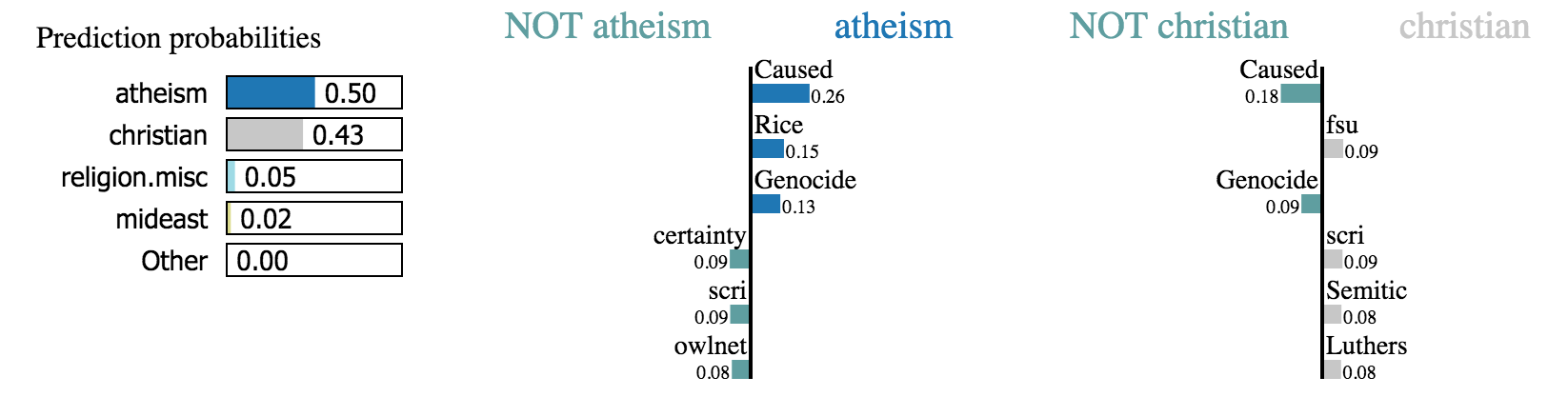

- `fig-04-multiclass-text.png` is byte-identical to the source PNG.
- `fig-04-multiclass-text-mobile.png` places the original whole image before three source-pixel crops (probabilities and two complete class-pair panels); it adds no labels or data.

## `tidymodels/lime` Iris README output — MIT

**Source:** pinned [`tidymodels/lime` commit `1ac166867a7b2b4af6e3f4717159cd59e30cf7b0`](https://github.com/tidymodels/lime/tree/1ac166867a7b2b4af6e3f4717159cd59e30cf7b0), README.Rmd-generated `man/figures/README-unnamed-chunk-2-1.png`. The pinned MIT license applies to the associated documentation and this author-generated plot; the complete MIT notice and terms are reproduced above in this article.

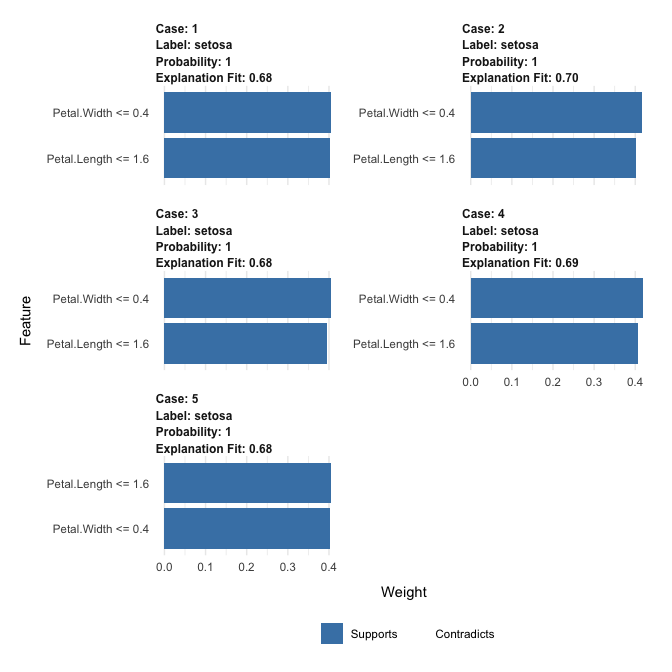

- `fig-05-iris-cases.png` is byte-identical to the source PNG.
