t-SNE 與 UMAP：漂亮的群集圖能證明什麼？

p(j|i) = exp(-||x_i-x_j||² / (2 sigma_i²))
         / sum_{k != i} exp(-||x_i-x_k||² / (2 sigma_i²))

p_ij = (p(j|i) + p(i|j)) / (2n),  i != j

H_i = -sum_j p(j|i) log p(j|i)
perplexity_i = exp(H_i)

q_ij = (1 + ||y_i-y_j||²)^(-1)
       / sum_{k != l} (1 + ||y_k-y_l||²)^(-1)

loss = KL(P || Q) = sum_{i != j} p_ij log(p_ij / q_ij)

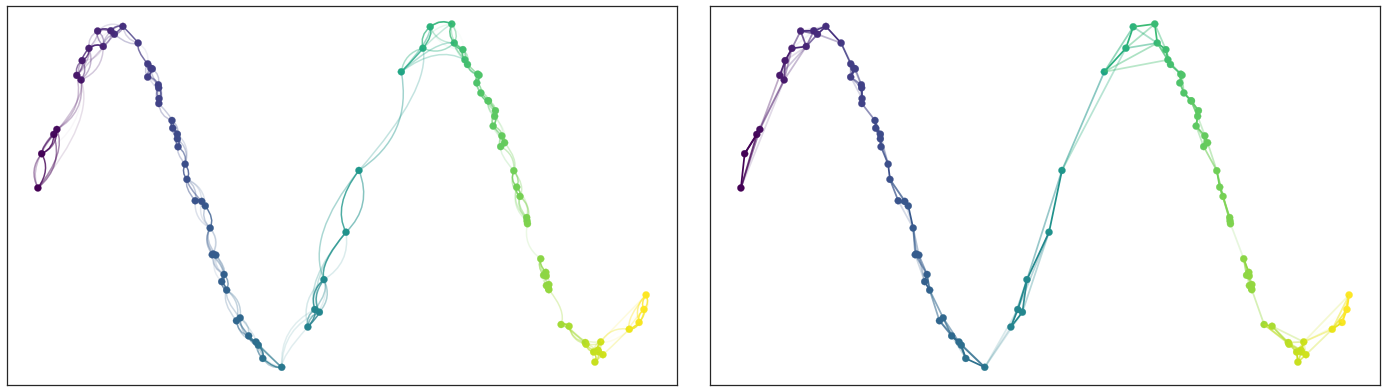

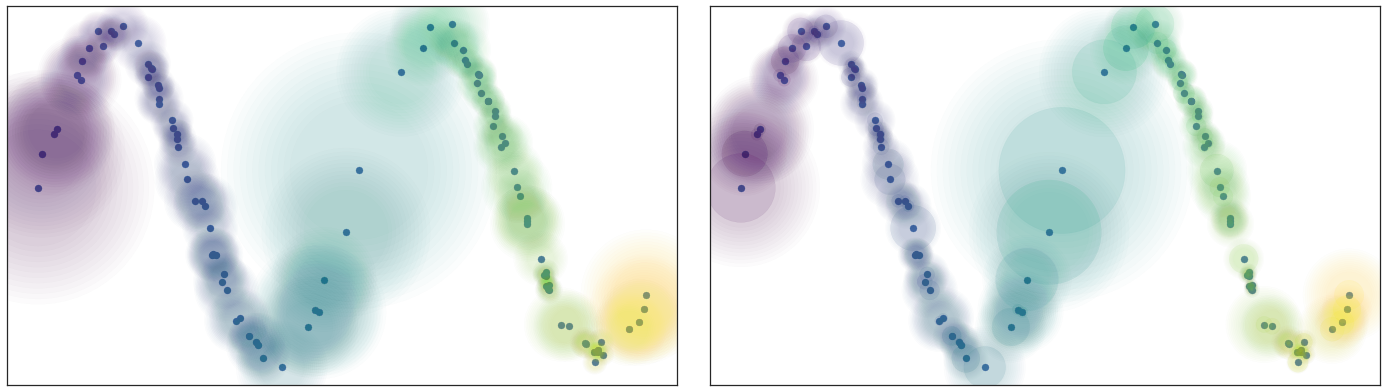

w(i -> j) = exp(-max(0, d(i,j) - rho_i) / sigma_i)

q_ij = 1 / (1 + a ||y_i-y_j||^(2b))
loss = -sum_{i<j} [w_ij log(q_ij) + (1-w_ij) log(1-q_ij)]

numpy==1.26.3
scipy==1.14.0
scikit-learn==1.5.1
umap-learn==0.5.6
pynndescent==0.5.13
numba==0.60.0
llvmlite==0.43.0
joblib==1.4.2
threadpoolctl==3.5.0
tqdm==4.66.4

python3 -m venv .venv
source .venv/bin/activate
# 將上方版本清單另存為requirements.txt
python -m pip install -r requirements.txt
# 將下方程式另存為neighborhood_embeddings.py
python neighborhood_embeddings.py

import numpy as np
import sklearn
import numba
import pynndescent
import umap
from sklearn.datasets import load_digits
from sklearn.decomposition import PCA
from sklearn.manifold import TSNE, trustworthiness
from threadpoolctl import threadpool_limits

# Descriptive exploration of a fixed400-row sample, not a held-out prediction.
# Digit labels are not used for sampling, PCA or either embedding.
X, _ = load_digits(return_X_y=True)
indices = np.sort(np.random.default_rng(42).choice(len(X), 400, replace=False))
with threadpool_limits(limits=1):
    base = PCA(n_components=20, svd_solver="full").fit_transform(X[indices])
    tsne_options = dict(n_components=2, perplexity=30, max_iter=500,
                        init="pca", learning_rate="auto",
                        random_state=42, n_jobs=1)
    umap_options = dict(n_components=2, n_neighbors=15, min_dist=0.1,
                        metric="euclidean", random_state=42,
                        n_jobs=1, n_epochs=300)
    t1 = TSNE(**tsne_options).fit_transform(base)
    t2 = TSNE(**tsne_options).fit_transform(base)
    u1 = umap.UMAP(**umap_options).fit_transform(base)
    u2 = umap.UMAP(**umap_options).fit_transform(base)
    print(f"numpy={np.__version__} sklearn={sklearn.__version__} "
          f"umap={umap.__version__} pynndescent={pynndescent.__version__} "
          f"numba={numba.__version__}")
    print(f"exploration rows={len(base)} original_features=64 PCA_features=20")
    for name, embedding, repeated in [("TSNE", t1, t2), ("UMAP", u1, u2)]:
        print(f"{name} shape={embedding.shape} finite={np.isfinite(embedding).all()} "
              f"same_environment_repeat_equal={np.array_equal(embedding, repeated)}")
        print(f"{name} trustworthiness_k10_in_PCA_space="
              f"{trustworthiness(base, embedding, n_neighbors=10):.6f}")

uniform = np.full(3, 1 / 3)
entropy = -np.sum(uniform * np.log(uniform))
print(f"three_uniform_neighbors perplexity={np.exp(entropy):.6f}")
a, b = 0.6, 0.5
print(f"fuzzy_union_0.6_0.5={a + b - a * b:.6f}")

numpy=1.26.3 sklearn=1.5.1 umap=0.5.6 pynndescent=0.5.13 numba=0.60.0
exploration rows=400 original_features=64 PCA_features=20
TSNE shape=(400, 2) finite=True same_environment_repeat_equal=True
TSNE trustworthiness_k10_in_PCA_space=0.985141
UMAP shape=(400, 2) finite=True same_environment_repeat_equal=True
UMAP trustworthiness_k10_in_PCA_space=0.980451
three_uniform_neighbors perplexity=3.000000
fuzzy_union_0.6_0.5=0.800000
