Normalization 與訓練診斷

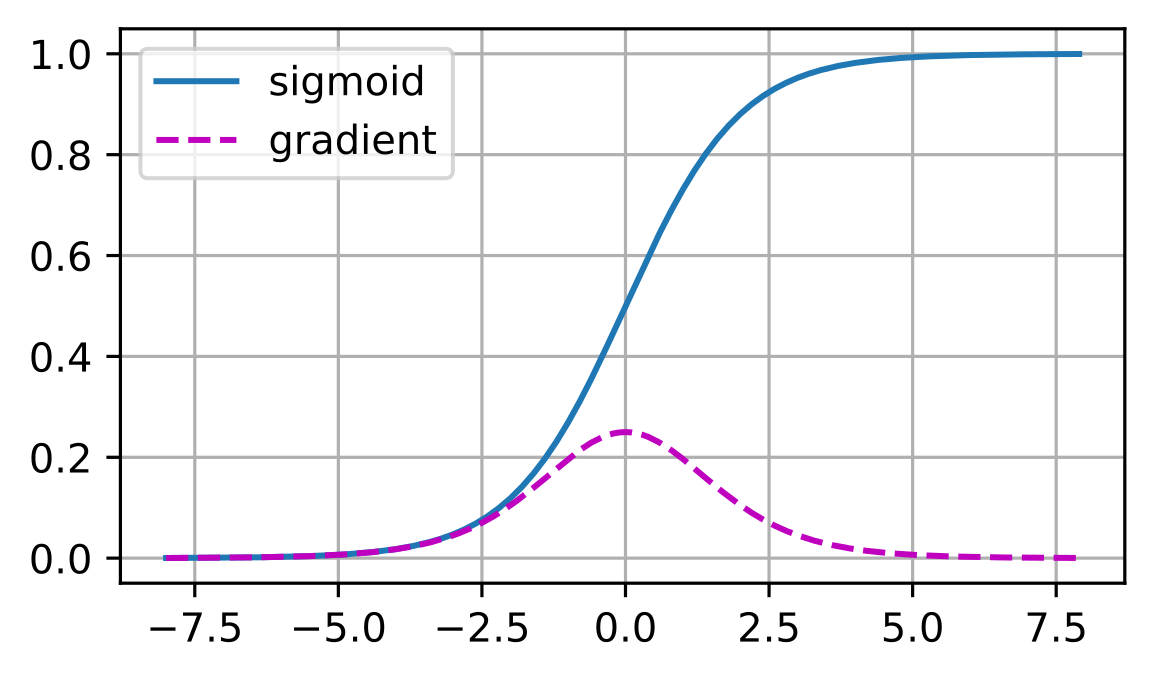

輸出對原始輸入的導數 = 0.25^20
                       = 9.094947017729282e-13

Var(output) ≈ fan_in * s² * v

mu_batch[c]  = mean_n X[n,c]
var_batch[c] = mean_n (X[n,c]-mu_batch[c])²
X_hat[n,c]   = (X[n,c]-mu_batch[c])/sqrt(var_batch[c]+epsilon)
Y[n,c]       = gamma[c]*X_hat[n,c] + beta[c]

X = [[1, 2],
     [3, 0],
     [5, 4]]
gamma = [2, 0.5]
beta  = [-1, 1]
epsilon = 1e-5

Y_train = [[-3.449485150, 1.000000000],
           [-1.000000000, 0.387628712],
           [ 1.449485150, 1.612371288]]

running_mean_new = 0.9*running_mean_old + 0.1*batch_mean
                 = [0.3, 0.2]
running_var_new  = 0.9*running_var_old + 0.1*batch_unbiased_var
                 = [1.3, 1.3]

Y_eval = gamma*(X-running_mean)/sqrt(running_var+epsilon) + beta

import numpy as np
import torch

print(f"numpy={np.__version__} torch={torch.__version__} device=cpu dtype=float64")
X = np.array([[1., 2.], [3., 0.], [5., 4.]])
gamma = np.array([2., .5])
beta = np.array([-1., 1.])
eps, momentum = 1e-5, .1
mean = X.mean(axis=0)
biased_var = X.var(axis=0, ddof=0)
unbiased_var = X.var(axis=0, ddof=1)
expected_train = (X - mean) / np.sqrt(biased_var + eps) * gamma + beta
bn = torch.nn.BatchNorm1d(2, eps=eps, momentum=momentum, affine=True,
                          track_running_stats=True, dtype=torch.float64)
with torch.no_grad():
    bn.weight.copy_(torch.tensor(gamma))
    bn.bias.copy_(torch.tensor(beta))
x = torch.tensor(X, dtype=torch.float64)
bn.train()
with torch.no_grad():
    actual_train = bn(x).numpy()
assert np.allclose(actual_train, expected_train, atol=1e-12, rtol=0)
expected_running_mean = momentum * mean
expected_running_var = (1 - momentum) * np.ones(2) + momentum * unbiased_var
assert np.allclose(bn.running_mean.numpy(), expected_running_mean, atol=1e-12, rtol=0)
assert np.allclose(bn.running_var.numpy(), expected_running_var, atol=1e-12, rtol=0)
assert bn.num_batches_tracked.item() == 1
bn.eval()
expected_eval = (X - expected_running_mean) / np.sqrt(expected_running_var + eps) * gamma + beta
with torch.no_grad():
    actual_eval = bn(x).numpy()
    alone_eval = bn(x[:1]).numpy()
    mixed_eval = bn(torch.cat([x[:1], torch.tensor([[100., -100.]], dtype=torch.float64)])).numpy()
assert np.allclose(actual_eval, expected_eval, atol=1e-12, rtol=0)
assert np.array_equal(alone_eval[0], mixed_eval[0])
print("batch_mean=", mean.tolist())
print("batch_variance_biased=", np.round(biased_var, 9).tolist())
print("batch_variance_unbiased=", unbiased_var.tolist())
print("BN_train_output=", np.round(actual_train, 9).tolist())
print("BN_train_column_mean_after_affine=", np.round(actual_train.mean(axis=0), 9).tolist())
print("BN_running_mean_after_one_batch=", bn.running_mean.tolist())
print("BN_running_variance_after_one_batch=", bn.running_var.tolist())
print("BN_eval_output=", np.round(actual_eval, 9).tolist())
print("BN_eval_first_sample_batch_composition_invariant=", True)
ln = torch.nn.LayerNorm(2, eps=eps, elementwise_affine=False, dtype=torch.float64)
row_mean = X.mean(axis=1, keepdims=True)
row_var = X.var(axis=1, ddof=0, keepdims=True)
expected_ln = (X - row_mean) / np.sqrt(row_var + eps)
with torch.no_grad():
    actual_ln = ln(x).numpy()
    alone_ln = ln(x[:1]).numpy()
assert np.allclose(actual_ln, expected_ln, atol=1e-12, rtol=0)
assert np.array_equal(alone_ln[0], actual_ln[0])
print("LayerNorm_rowwise_output=", np.round(actual_ln, 9).tolist())
print("LayerNorm_first_sample_batch_composition_invariant=", True)
# A constructed scalar chain: preactivations all zero, weights1, fixed biases.
u = torch.tensor(0., dtype=torch.float64, requires_grad=True)
h = u
for layer in range(20):
    h = torch.sigmoid(h - (0. if layer == 0 else .5))
h.backward()
expected_chain = .25 ** 20
assert np.isclose(u.grad.item(), expected_chain, atol=0., rtol=1e-12)
print(f"constructed20sigmoid_chain_input_gradient={u.grad.item():.15e}")
print("scope=one CPU BN batch with biased forward/unbiased running variance, fixed affine; eval/LN checks and constructed scalar chain only; no training fit, benchmark, or general vanishing-gradient guarantee")

numpy=1.26.3 torch=2.3.1+cu118 device=cpu dtype=float64
batch_mean= [3.0, 2.0]
batch_variance_biased= [2.666666667, 2.666666667]
batch_variance_unbiased= [4.0, 4.0]
BN_train_output= [[-3.44948515, 1.0], [-1.0, 0.387628712], [1.44948515, 1.612371288]]
BN_train_column_mean_after_affine= [-1.0, 1.0]
BN_running_mean_after_one_batch= [0.30000000000000004, 0.2]
BN_running_variance_after_one_batch= [1.3, 1.3]
BN_eval_output= [[0.227876504, 1.789349181], [3.736095089, 0.912294535], [7.244313673, 2.666403827]]
BN_eval_first_sample_batch_composition_invariant= True
LayerNorm_rowwise_output= [[-0.999980001, 0.999980001], [0.999997778, -0.999997778], [0.999980001, -0.999980001]]
LayerNorm_first_sample_batch_composition_invariant= True
constructed20sigmoid_chain_input_gradient=9.094947017729282e-13
scope=one CPU BN batch with biased forward/unbiased running variance, fixed affine; eval/LN checks and constructed scalar chain only; no training fit, benchmark, or general vanishing-gradient guarantee
